FTECH CB Wiring
F-Tech CB V1 Wiring Diagram
Wiring Note:
- Coin Pin → SIG PIN
- CS 12V → 12V PIN
- CS GND → GND PIN
List Of Devices:
- Ftech CB
- Type C Data Cable
- Universal Coinslot
- 12v 2Amp Power Supply

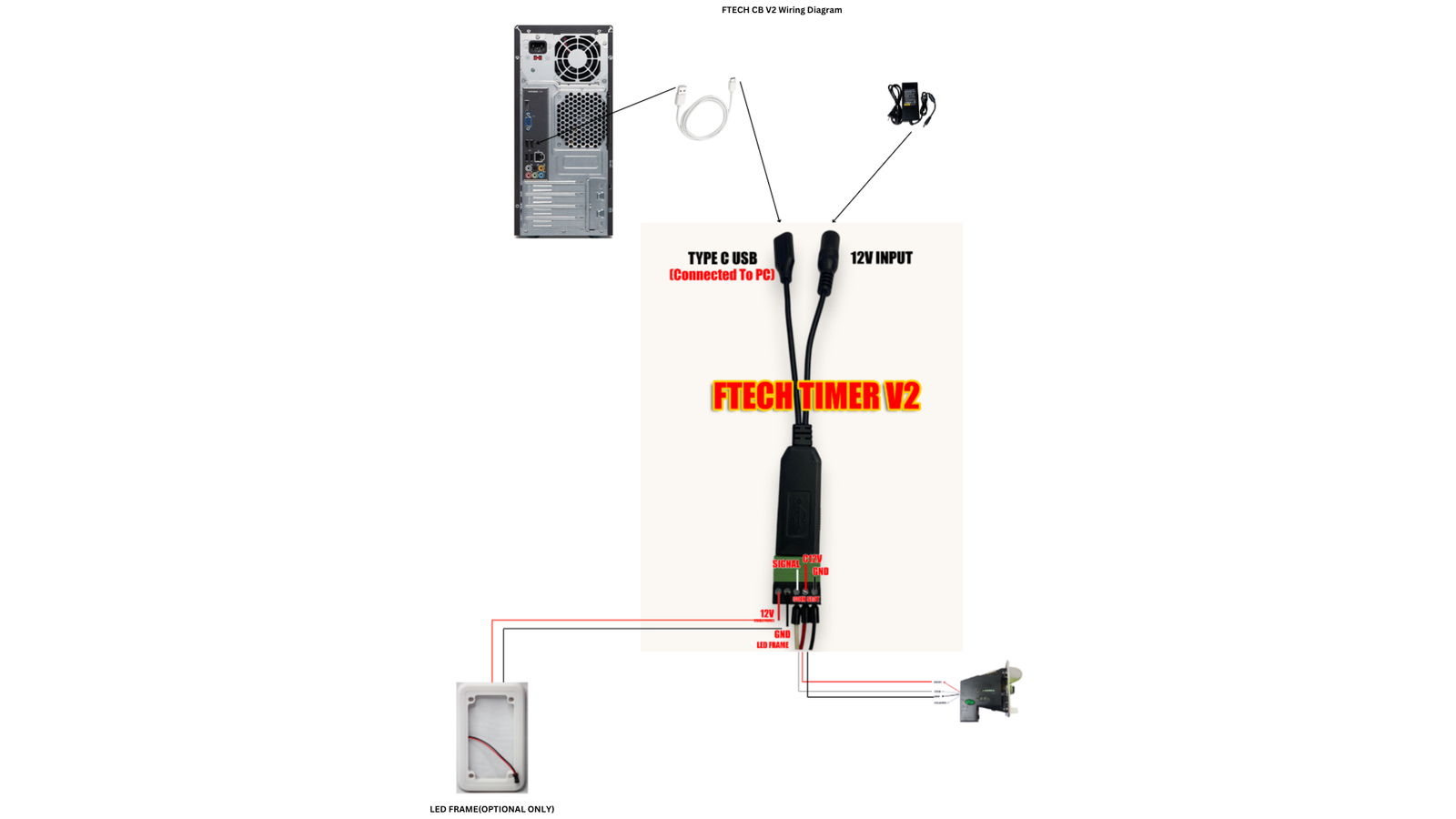

F-Tech CB V2 Wiring Diagram (Option 1)
Wiring Note:
- Coin Pin → SIG PIN
- CS 12V → 12V PIN
- CS GND → GND PIN
List Of Devices:
- Ftech CB v2
- Type C Data Cable
- Universal Coinslot
- 12v 2Amp Power Supply
- Led Frame(Optional only)

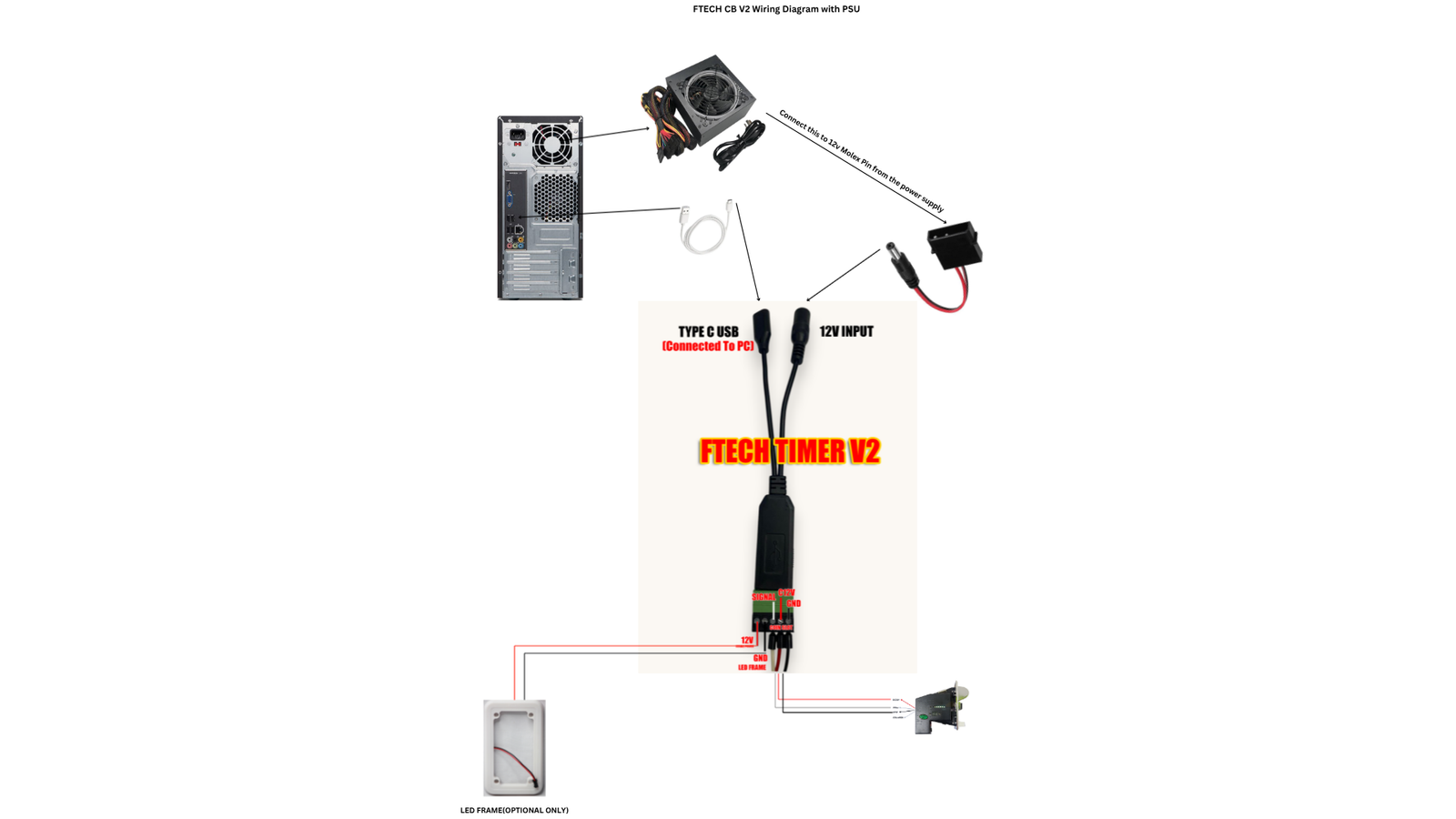

F-Tech CB V2 Wiring Diagram With Molex To Male Jack Adaptor(Option 2)
Wiring Note:
- Coin Pin → SIG PIN
- CS 12V → 12V PIN
- CS GND → GND PIN
List Of Devices:
- Ftech CB v2
- Type C Data Cable
- Universal Coinslot
- Molex To Male Jack Adaptor
- Led Frame(Optional only)
Optional Device for FULL Features
Please note: Ftech License is required!.
List Of Devices:
- Orange Pi One
- atleast 16gb Class 10 SD CARD
- 5v 2amp Power supply for orange pi
- Orangepi Cable
